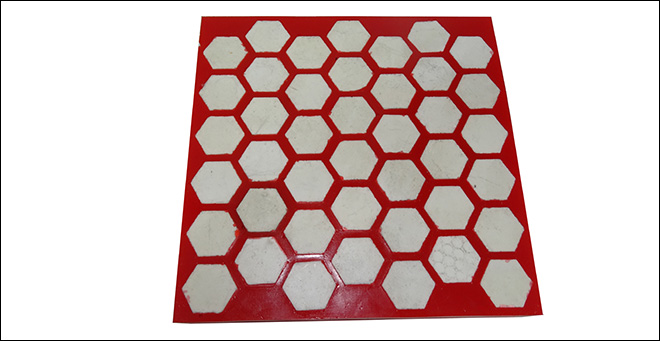

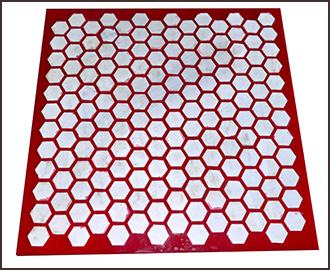

Urethane Ceramic Liners are constructed of high alumina ceramic tiles back with powerful magnetic. Ceramics have incredible tensile strength and hardness with industry leading abrasion resistance in both wet and dry applications. Ceramic cylinders, hexagonal prisms, or flat tiles are embedded in elastomer. Their specialized manufacturing process assures adhesion of the tiles embedded in the urethane and provides high abrasion, high impact resistance in confined or complicated applications or configurations.

Urethane Magnetic Liner can be installed quickly and safely without the use of welders or bolt fastening systems.

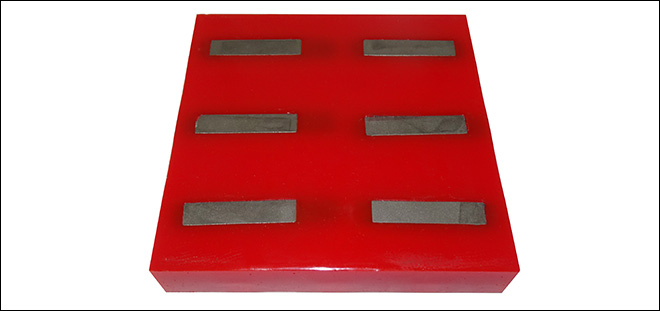

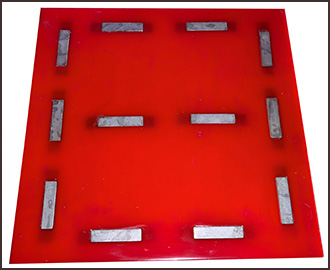

Featuring strong, rare-earth magnets, these durable liners reduce material sticking, reduce noise and provide superior protection in even the most demanding applications. Urethane Ceramic Liners are ideal for the hardest of wear areas, including turnheads, flop gates, high impact areas, and belt transportation areas.

Features:

• Imbedded high strength rare earth magnets allow for installation using magnetic force alone
• No Bolting – No Welding – No Cutting to the applied area
• Eliminates the need for Hot Work permits in most areas
• Stay securely in place on vibrating screens and chutes
• Can be repositioned easily and safely, when time permits, for the repair to be done permanently
• Can be field trimmed to fit unusual surfaces or conditions, due to the polyurethane material

Available Size:
Length x Width: 6" x 6", 12" x 12".
Thickness: 1", 1-1/2", 2", 2-1/2"

Contact Us For Details, or Inform Your Specific Request.
